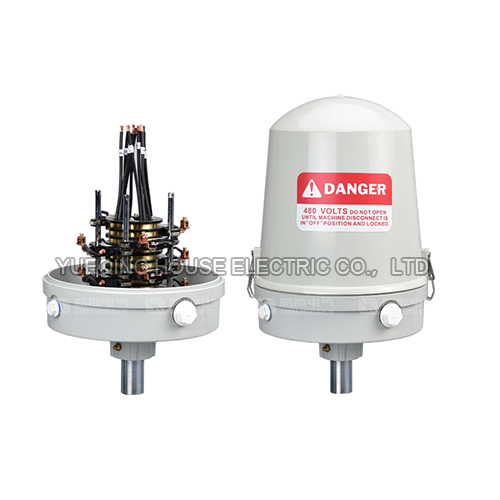

product description
■ With 11 rings the collector gives total connection between the main electric panel and the spans;
■ Bearing rotate, make sure good performance;
■ The collector is water proofed;
■Brass and carbon brush conduct assures years of trouble-free service.
- Installation
The collector ring is installed on the center pivot irrigator frame , consists of rotation part and fixation part. The rotary structure of rotating part connected device called ‘rotor’. The fixed part installed on the bracket of the equipment, called ‘stator’.
The ‘rotor’ is fixed through the G1 “threaded holed or the G1/2” threaded hole on the base side. The ‘stator’ is installed on the base through the mounting shaft G1”
Maintenance
■ Working temperature: -40℃~+80℃;
■ Do not operate the device over the rated voltage and current;
■ Please replace the carbon brush when it is weared more than 1/4 of the original length;
Specification
■ Rated Voltage: 480VAC/VDC;
■ Rated Current: 25A/Circuit;
■ Wire Specification: AWG 6mm2;

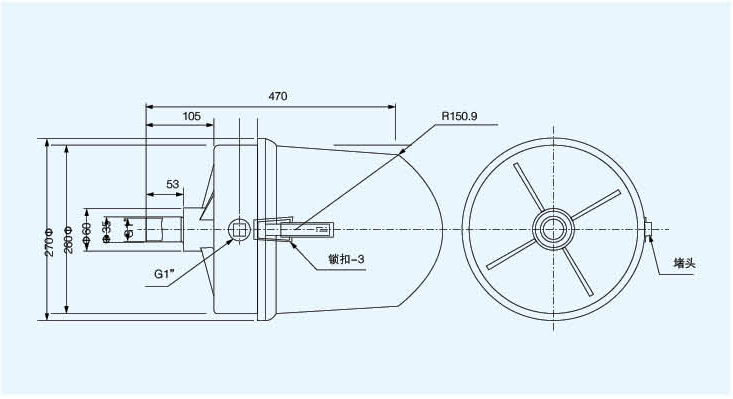

Out Size And Installing Size(mm)
