product description
■Synthesis PE material, never variants, high flexibility,easily to install;
■ Temperature range from -60℃~+80℃;
■ UV-resistance, anti-aging, long life working at outdoors good protection.
- Description
Features
■ Use for connecting large section conductor (up to 50mm2);
■ Designed for asian and eastern european market;
■ Made of impact resistant plastic material;
■ Can use various protection forms;
■ Four cable terminal.
Specification
■ For application inside of Lighting columns: Pole diameter:≥110 mm; Door size: ≥90×300mm;
■ 4 sliding terminals for, 2 cables 4-50 mm2;
■ Optional Fuses D II (E27) up to 25A;
■ Optional for standard installation devices on DIN-rall attachable up to 3 TE width (3×18 mm), max.height of devices75 mm

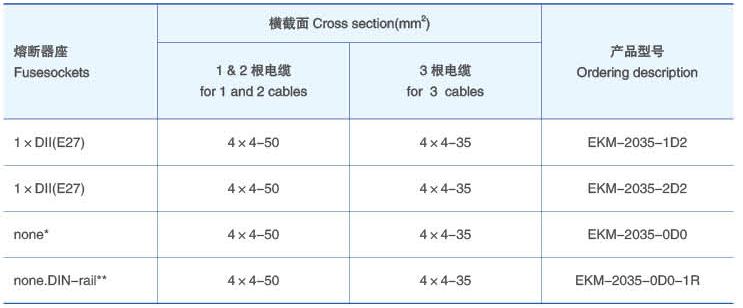

Parameter

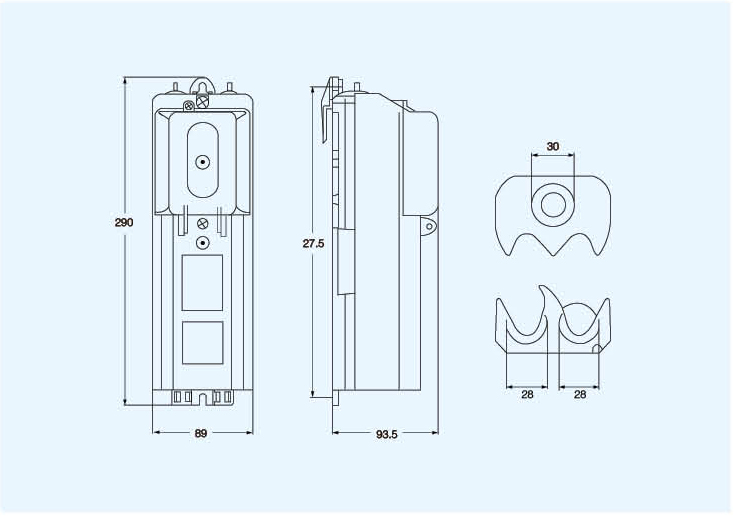

Out Size And Installing Size(mm)
