product description
WORKIING CONDITION
■ Ambient temperature:-5℃~+40℃;
average no more than35℃
■ Installation site:elevation is below 2000m
- Description
APPLICATION

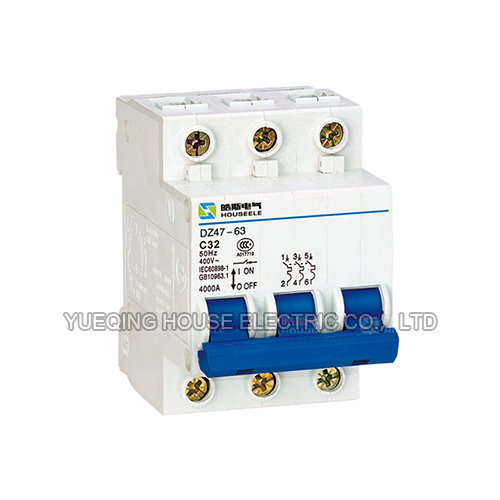

DZ7-63 series circuit breaker is used in lighting distribution system or motor distribution system.
The product is mainly used in AC50Hz/60Gz,rated voltage 230V、400V,rated current 1A-63A circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.This product conform to
GB10963.1¨IEC60898-1.
MAIN TECHNOLOGY
Main specification:according to the rated current1、2、3、4、5、6、10、16、20、25、32、40、50、63A;
Pole:a.single-pole b.two-pole c.three-pole d.four-pole;
According to the type of instantaneous tripping of circuit breaker:a.C Type b.D Type

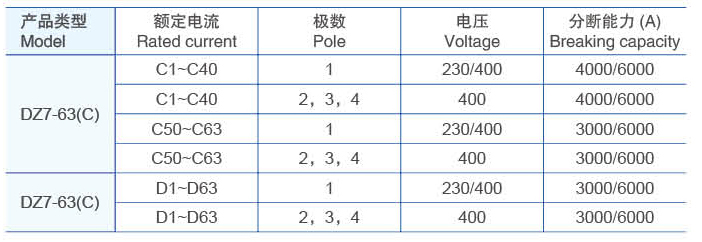

Rated service short circuit breaking capacity
Mechanical and electric endurance:a.electric endurance:not lower than 6000 times b.mechanical endurance:not lower than 10000 times
TECHNICAL SPECIFICATION

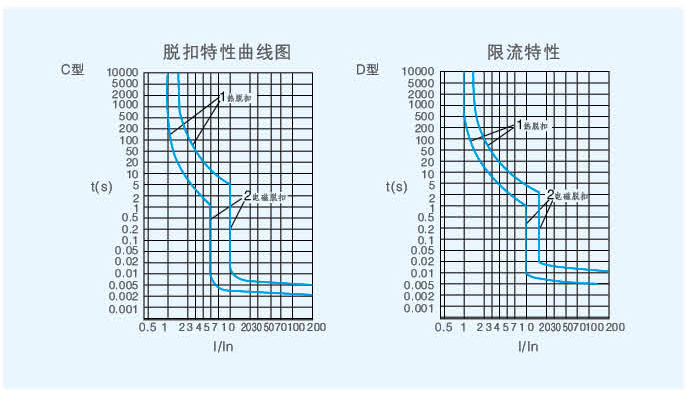

DZ47-63 SERIES CIRCUIT BREAKER HAS HIGH CURRRNT-LIMIT CAPACITY,
TO FURTHEST LIMT THE DESTRUCTIVE ENERGY CAUSED BY SHORT CIRCUIT.
