product description

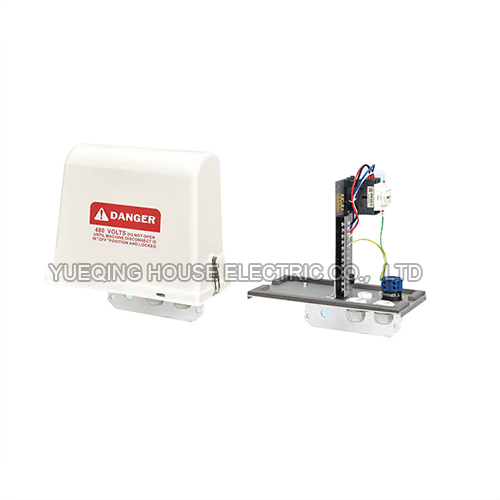

■ Intermediate tower box, End tower box, and Booster tower box;
■ Heavy-duty, Stainless steel internal spring provides corrosion protection;
■ Galvanized steel construction,Stainless steel shaft and bearing assembly helps assure long life;
■ High quality electrical element and circuits to extend life;
■ ABS Tower box cover.
- Installation
Install the equipment through the mounting panel of the tower box. If the mounting holes need to be customized, please provide additional drawings or instructions.
Maintenance
■ Working temperature:-40℃~+80℃;
■ Please don’t use overload current and voltage;
■ Please turn off the switch to “off” position then perform maintenance.
Specification
■ Rated voltage: 480VAC/VDC;
■ Rated Current: 9A/12A/25A;
■ Insulation resistance: ≥500MΩ;
■ Protection Degree: IP55.

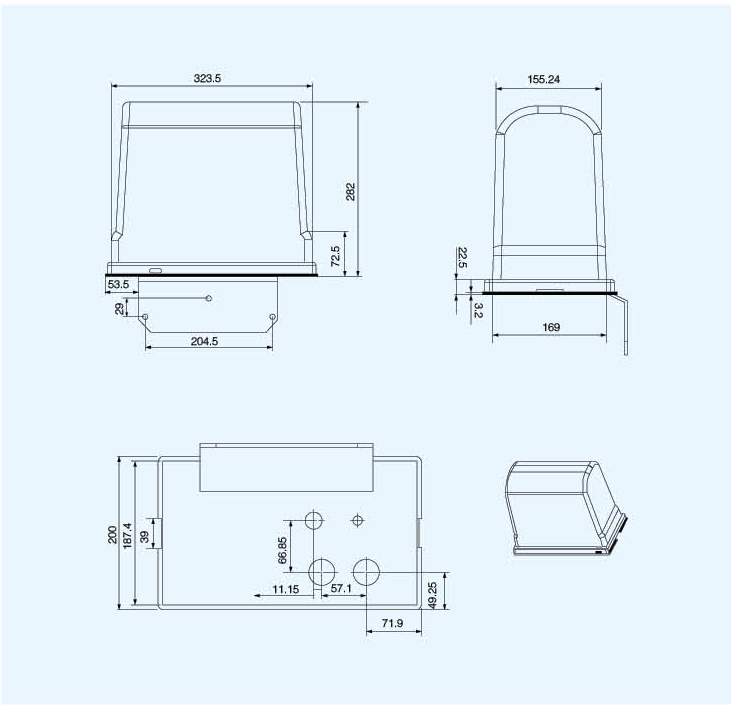

Out Size And Installing Size（mm）
