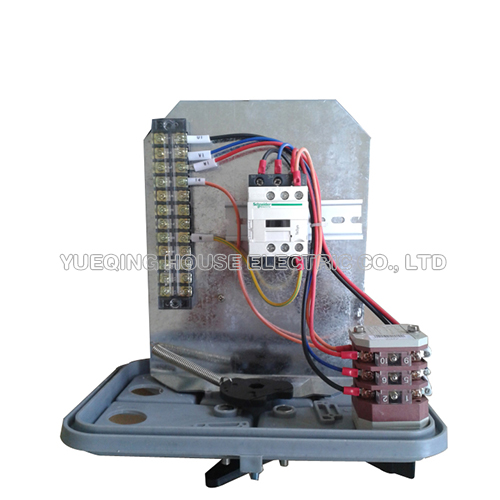

HS-8223 Last Tower Box
product description
■ Intermediate tower box,the last to end tower box,
end tower box and auto reverse end tower box;
■ Heavy-duty,Stainless steel internal spring provides
corrosion protection;
■ Galvanized steel construction,Stainless steel shaft
and bearing assembly helps assure long life;
■ High quality electrical element and circuits to
extend life;
■ ABS Tower box cover.
end tower box and auto reverse end tower box;
■ Heavy-duty,Stainless steel internal spring provides
corrosion protection;
■ Galvanized steel construction,Stainless steel shaft
and bearing assembly helps assure long life;
■ High quality electrical element and circuits to
extend life;
■ ABS Tower box cover.
- Description
Maintenance
■ Working Temperature:-40℃～+80℃;
■ Please don’t use overload current and voltage;
■ please turn off the switch to “off”position then perform maintenance.
Specification
■ Rated voltage:480VAC/VDC;
■ Rated current:9A/12A/25A;
■ Insulation resistance:≥500MΩ;
■ Protection degree: IP55.

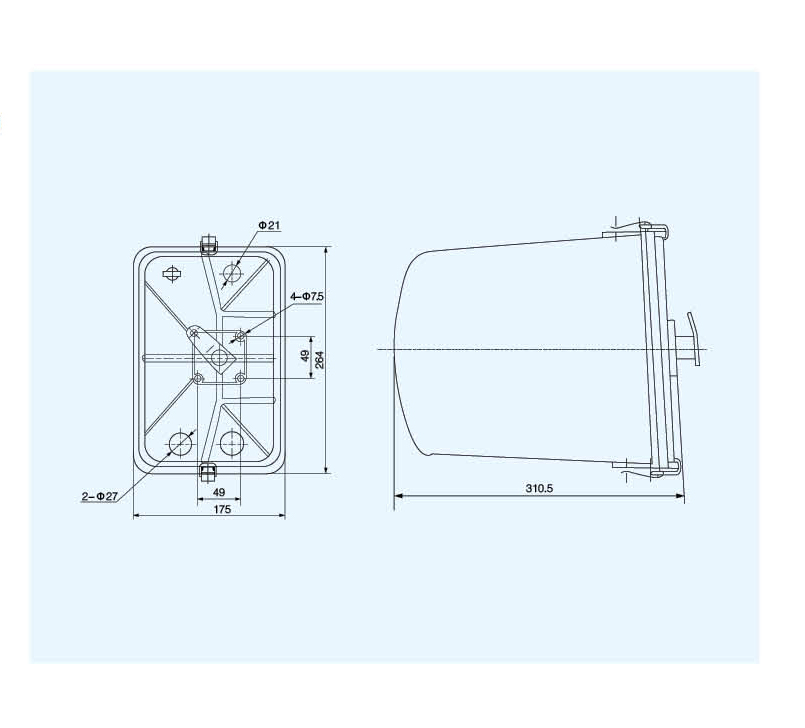

Out Size And Installing Size(mm)
